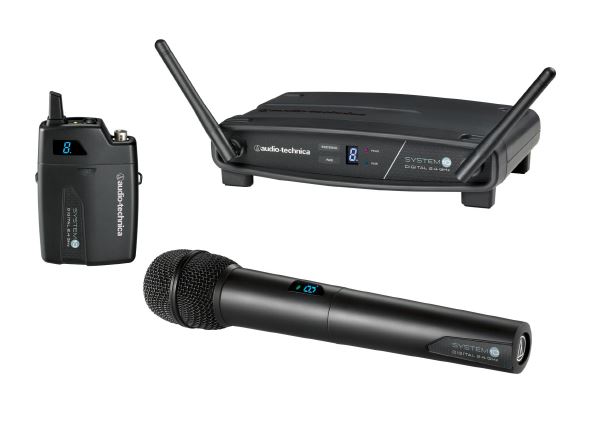

무선마이크/ System10

본문

Overall System

Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100') typical Open range environment with no interfering signals
Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz Depending on microphone type

Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight: 290 grams (10.2 oz)
Accessory Included: Power supply

Rf Power Output High:10 mW
Spurious Emissions:Following federal and national regulations
Input Connections: Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries: Two 1.5V AA not included
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight: 100 grams (3.5 oz) without batteries

Rf Power Output High: 30mW; Low: 10mW, nominal
Spurious Emissions: According to National Regulations
Batteries: Two 1.5V AA not included
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight: 280 grams (9.9 oz) without batteries
Accessory Included: AT8456a Quiet-Flex™ stand clamp
