광 오디오 분리(EDID)
본문

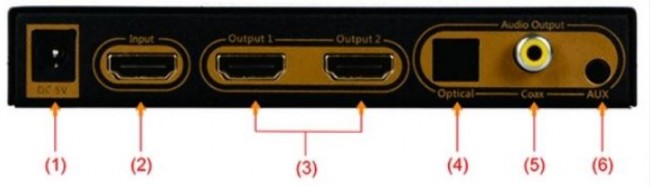

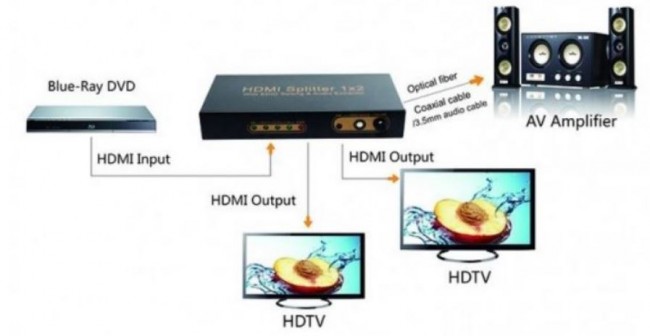

1. Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of splitter.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of splitter.
3. If you need a digital audio, connect one optical fiber or coaxial cable from digital power amplifier into the optical / coax output port port of splitter.
4. If you need an analog audio, connect one 3.5mm audio cable from analog power amplifier/TV into the AUX jack of splitter.

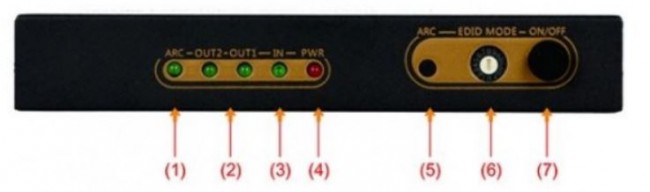

Note: Only when the audio format is LPCM, the AUX will have sound output. So it is proposed that change the EDID mode in 2CH mode. In addition, the AUX no output in ARC ON mode.
5. Connect 5V power supply to the extractor and inserted into the power socket.
